High-Capacity Hybrid Inverter with Full Backup Support

SUNGROW SH25T Hybrid Inverter

High-performance 25kW hybrid inverter designed for large-scale commercial and industrial solar systems, delivering maximum efficiency, seamless backup, and advanced energy management.

4ca5e42a-9a95-407d-aac6-8e4d84cd1710

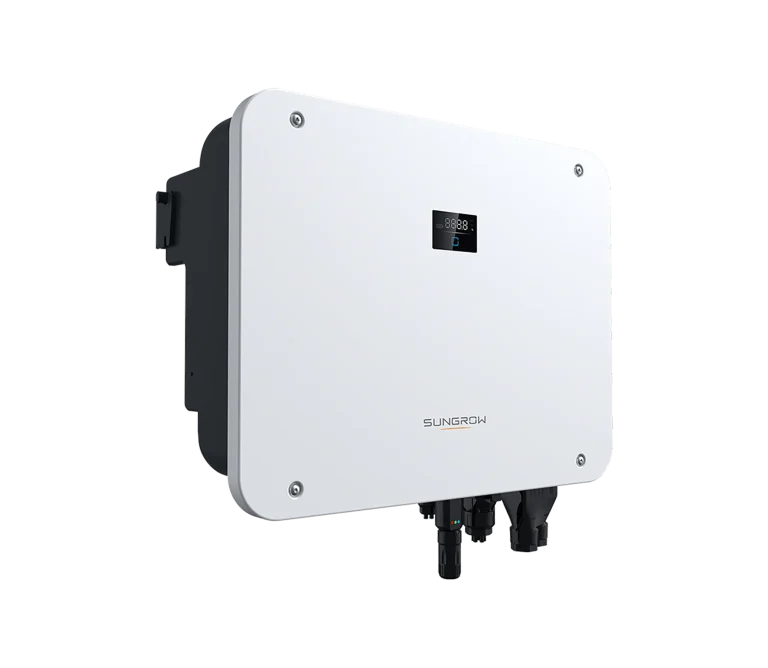

SUNGROW SH25T Hybrid Inverter

Overview

The Sungrow SH25T Hybrid Three Phase Inverter is built for high-demand commercial and industrial solar applications. With its high PV input capacity, powerful output performance, and intelligent battery integration, it ensures reliable and uninterrupted power supply.

It supports seamless switching, full backup functionality, and advanced safety features, making it a robust and future-ready energy solution.

Key Highlights:

  • Built-in 63A bypass for whole home backup
  • 10 ms seamless switching
  • Supports 100% unbalanced output
  • Max 16A DC input per string
  • 50A fast charge/discharge
  • Plug & play installation
  • Quiet operation (indoor/outdoor)
  • AFCI protection support
  • IP65 rated

🟩 Technical Snapshot

Feature Specification
Model SH25T
Type Hybrid Three Phase Inverter

☀️ Input (DC)

Feature Specification
Recommended Max. PV Input Power 50000 Wp
Max. PV Input Voltage 1000 V
Min. PV Input / Startup Voltage 150 V / 180 V
Rated PV Input Voltage 600 V
MPPT Operating Voltage Range 150 V – 950 V
No. of Independent MPPT Trackers 3
No. of PV Strings per MPPT 2 / 2 / 1
Max. PV Input Current 80 A (32 A / 32 A / 16 A)
Max. DC Short Circuit Current 100 A (40 A / 40 A / 20 A)
Max. Current for DC Connector 30 A

🔋 Battery Data

Feature Specification
Battery Type Li-ion battery
Battery Voltage Range 100 V – 700 V
Max. Charge / Discharge Current 50 A / 50 A
Max. Charge / Discharge Power 30000 W / 25000 W

⚡ Output (AC)

Feature Specification
Rated AC Output Power 25000 W
Max. AC Output Apparent Power 25000 VA
Max. AC Output Current 37.9 A
Rated AC Voltage 3 / N / PE, 220/380 V – 240/415 V
AC Voltage Range 270 V – 480 V
Rated Frequency 50 / 60 Hz
Power Factor > 0.99
THD < 3%

🔌 Backup

Feature Specification
Max. Output Power (Backup) 36500 VA (10 sec)
Max. Output Current 3 × 63 A
Backup Switch Time < 10 ms

⚙️ General Data

Feature Specification
Max Efficiency / Euro Efficiency 98.2% / 97.8%
Dimensions (W × H × D) 620 × 480 × 245 mm
Weight 40 kg
Cooling Method Fan cooling
Noise 50 dB
Protection Degree IP65
Operating Temperature -25°C to 60°C
Communication RS485, WLAN, Ethernet, CAN

Technical Documents & Installation Guides

Access complete technical details and resources for installation, configuration, and product specifications.

008-datasheet

Product Data Sheet

Ideal for engineers, dealers, and system designers to compare key parameters.

Download PDF

007-sop

System Wiring Diagram

Step-by-step wiring diagrams and connection details for proper installation.

Download PDF
